Features:

• Compact and self-cleaning drum filter units available in both pump and gravity fed versions
• Premium drum filter and moving bed biological filter
• High separating capacity through deep bed filtration down to 60 microns
• New Hel-X 13 media with significantly enlarged surface area for effective decomposition of pollutants
• New pump chamber for combination with Bitron UV Clarifiers

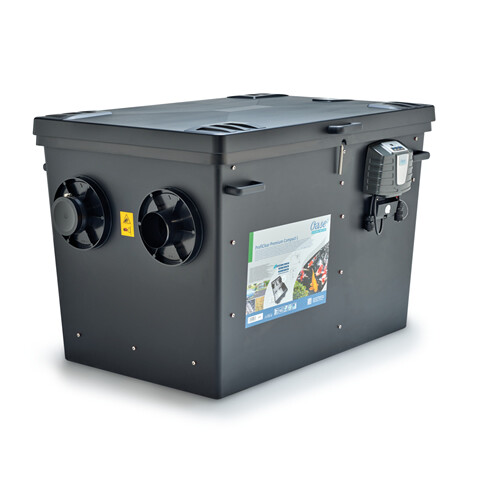

  Proficlear Premium Compact-L EGC - Gravity Fed

  With all the features of the Pump Fed version this filter can also be buried in the ground and fed from a bottom drain. This is the most efficient way to filter the pond and allows the filter to be entirely hidden away. There are basically 2 ways to achieve this. The best way is to use the ProfiClear Classic Pump Chamber which is a box of nearly identical size which connects to the Premium Compact in series. The pumps and the UVs go inside the pump chamber. Water then leaves via a outlet pipe to return to the pond. Or you could use an Aquamax Eco Premium in the pump chamber feeding a hose out to the UV and then to the pond. Alternatively you can fit an adaptor on the outlet to change this to a 50mm. This can then be attached to a dry mounted pump, like the Aquamax Dry, and the water then pumped through a UV and back to the pond via a hose. Ideal for Koi ponds of up to 35,000 litres (7,700 gallons), goldfish ponds of up to 70,000 litres (15,400 gallons) and nature ponds of up to 140,000 litres (30,795 gallons).Dimensions: 1370 x 891 x 815mm
  Power Consumption: 5w
  Cleaning Power: 1050w
  Cable length: 5 + 5m
  Net weight: 79.5kg
  Guarantee: 3 years
  Control Unit: Microcontroller
  Temperature Display: Digital
  Number of Nozzles: 4
  Cleaning Flow Rate: 2.5 l/min
  Automatic Self Cleaning: Manually, Sensor, Time Interval
  Biological Filter Surface: 57.3m2
  Inlets: 3
  Inlet Connection: DN110
  Outlets: 2
  Outlet Connection: DN150
  Sludge Discharge: DN75/DN110
  Mud Drain: DN110
  Max Flow: 25,000lph
  Suitable for Ponds up to max: 120,000 litres
  Suitable for Ponds with fish (no koi): 60,000 litres
  Suitable for Ponds with koi: 30,000 litres
  Gravity Fed System
  Installation above Water: 12.5cm
