Features:

• Compact and self-cleaning drum filter units available in both pump and gravity fed versions
• Premium drum filter and moving bed biological filter
• High separating capacity through deep bed filtration down to 60 microns
• New Hel-X 13 media with significantly enlarged surface area for effective decomposition of pollutants
• New pump chamber for combination with Bitron UV Clarifiers

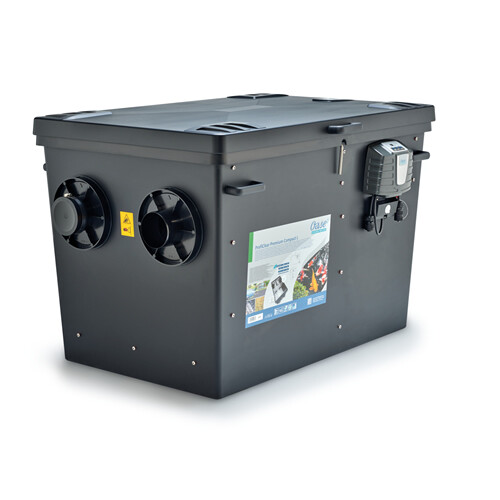

• Proficlear Premium Compact-L EGC - Pump Fed

  Using technology from the highly successful and popular Proficlear Premium automated Drum Filter and Moving Bed Biological Filter, OASE Germany have packed all the same great features into one easy to maintain box. This unit is ideal for Koi ponds of up to 30,000 litres (6,600 gallons), goldfish ponds of up to 60,000 litres (13,200 gallons) and nature ponds of up to 120,000 litres (26,396 gallons). The self-cleaning drum technology can remove solids down to as little as 60 microns (60 thousandths of a millimetre) that's around half the thickness of a human hair. It then flushes the waste away using a small amount of pond water. The moving bed filter contains the new Hel-X 13 media that have a significantly enlarged surface area. This aids in the growth of beneficial bacteria and increases the rate at which they can remove harmful ammonia, nitrite and other pollutants. A powerful air pump is needed to make the media move and create the "fluidised bed." This pump fed module is designed to be set up above ground and have the outlet of the filter feeding back into the pond or on to a waterfall. A Bitron C UV or a Bitron Eco UV can be mounted on the inlet to effectively clump together the algae before it enters the drum. The Proficlear Premium Compact-L EGC also features a digital control module through which you can perform a number of useful functions.Ideal for Koi ponds of up to 35,000 litres (7,700 gallons), goldfish ponds of up to 70,000 litres (15,400 gallons) and nature ponds of up to 140,000 litres (30,795 gallons).Dimensions: 1370 x 891 x 815mm
  Power Consumption: 5w
  Cleaning Power: 1050w
  Cable length: 5 + 5m
  Net weight: 79.5kg
  Guarantee: 3 years
  Control Unit: Microcontroller
  Temperature Display: Digital
  Number of Nozzles: 4
  Cleaning Flow Rate: 2.5 l/min
  Automatic Self Cleaning: Manually, Sensor, Time Interval
  Biological Filter Surface: 57.3m2
  Inlets: 3
  Inlet Connection: DN110
  Outlets: 2
  Outlet Connection: DN150
  Sludge Discharge: DN75/DN110
  Mud Drain: DN110
  Max Flow: 25,000lph
  Suitable for Ponds up to max: 120,000 litres
  Suitable for Ponds with fish (no koi): 60,000 litres
  Suitable for Ponds with koi: 30,000 litres
  Gravity Fed System
  Installation above Water: 12.5cm
